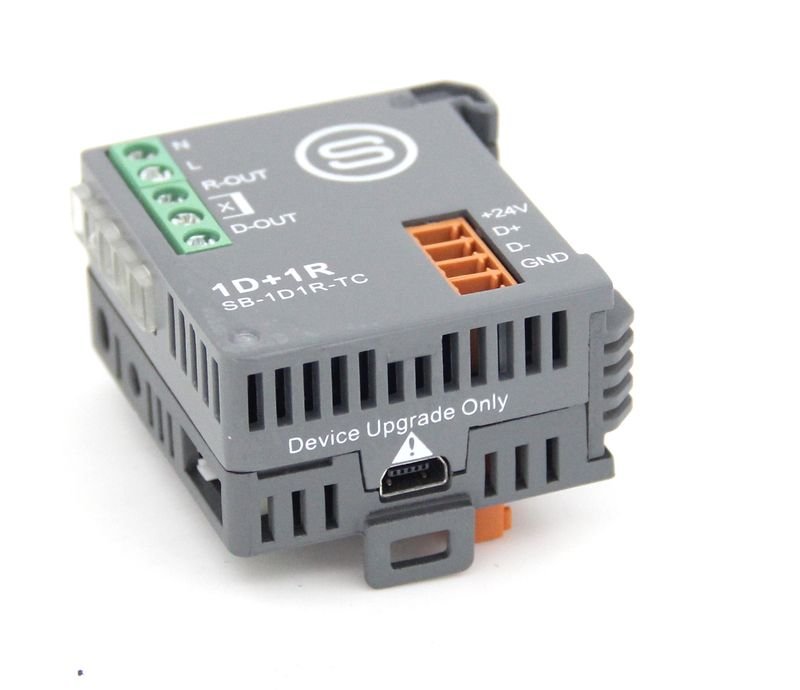

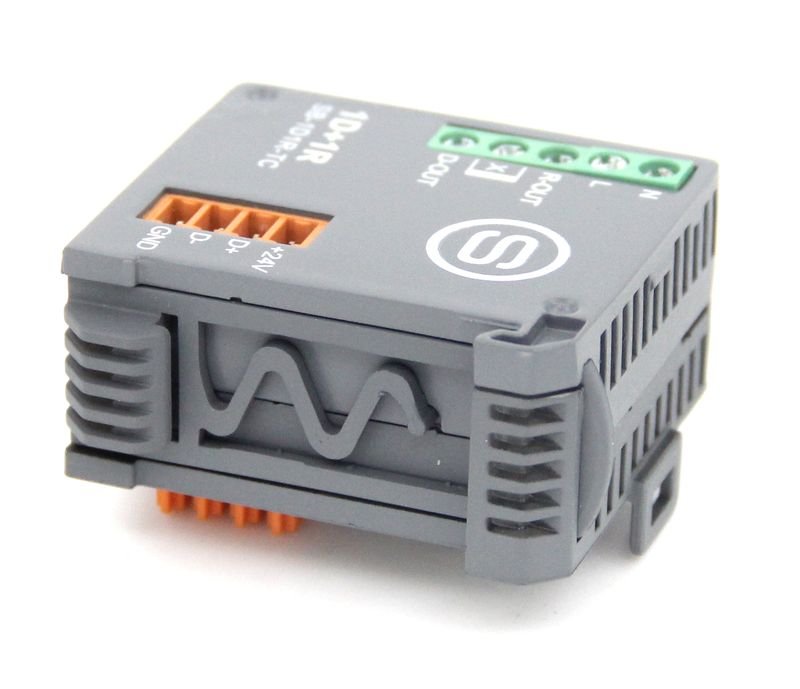

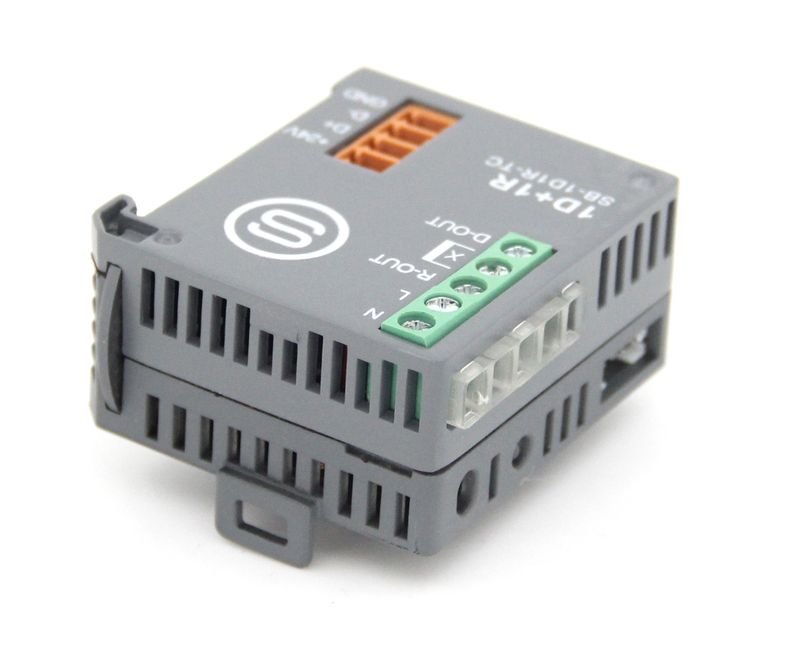

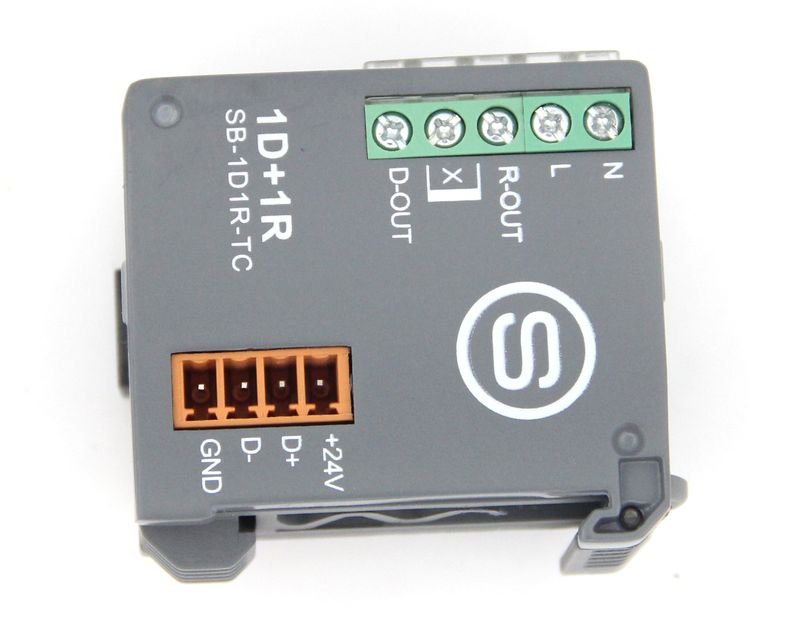

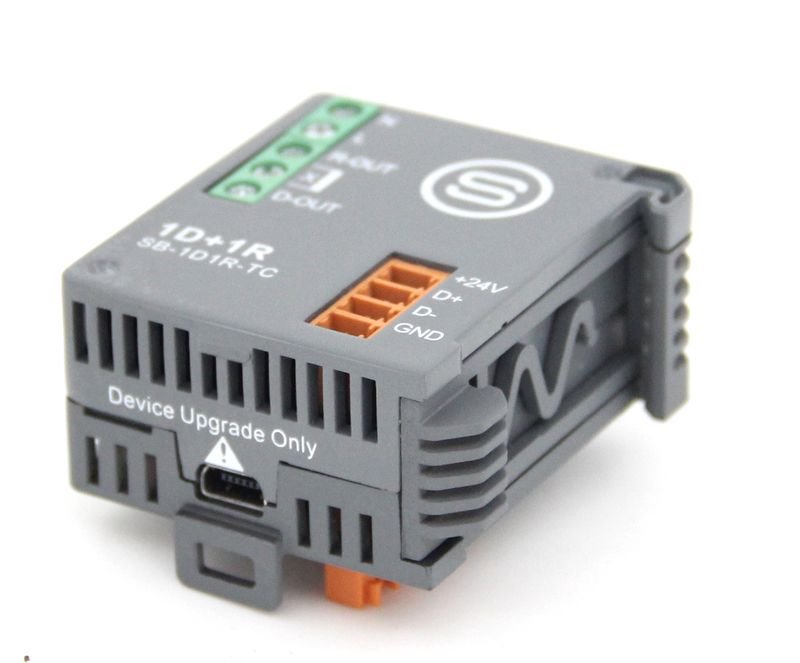

Upgrade your smart home or industrial automation system with the 1 Dimmer + 1 Relay TC Module, a powerful dual-function control module designed to manage both lighting and fan speed with ease. This compact, versatile module features a high-performance dimmer circuit for fan control and a relay switch for lighting or appliance control, making it an ideal solution for home automation, IoT projects, and industrial applications.

With built-in temperature compensation (TC) and reliable microcontroller-based operation, this module ensures precise control and safety. It supports both manual and remote operations and is compatible with popular home automation platforms, including Arduino, Raspberry Pi, and ESP8266/ESP32. Whether you’re creating a DIY smart switchboard or upgrading an existing system, this module offers easy integration and efficient performance.

Key Features:

• Dual-function module with 1 fan dimmer and 1 relay output
• Temperature-compensated (TC) for stable performance
• Ideal for AC fan speed control and light/appliance on-off switching
• Supports low-voltage triggering for safe automation
• Compact design suitable for smart switchboards or embedded panels
• Compatible with Arduino, Raspberry Pi, and other microcontrollers
• Wide range of applications: home automation, IoT devices, smart fan control, and more

Applications:

• Smart Home Automation
• Remote Light & Fan Control
• IoT & Embedded Systems
• Industrial Relay Switching
• Energy-Efficient Smart Devices

Technical Specifications:

• Input Voltage: 230V AC
• Relay Type: SPDT, 10A max load
• Dimmer Type: Triac-based phase-cut control
• Trigger Voltage: 3.3V/5V compatible
• PCB Size: Compact and easy to mount
