with scene controller. Mannual Programming Enabled. (Overheat, Overload Protection) single phase both 110/220 VAC, 50-60Hz. (Green operated supplied by 24VAC/25mA). Cascadable, Upgradable Via USB Cable (Warning:: never Load the Module in Total More than 10A MAX)

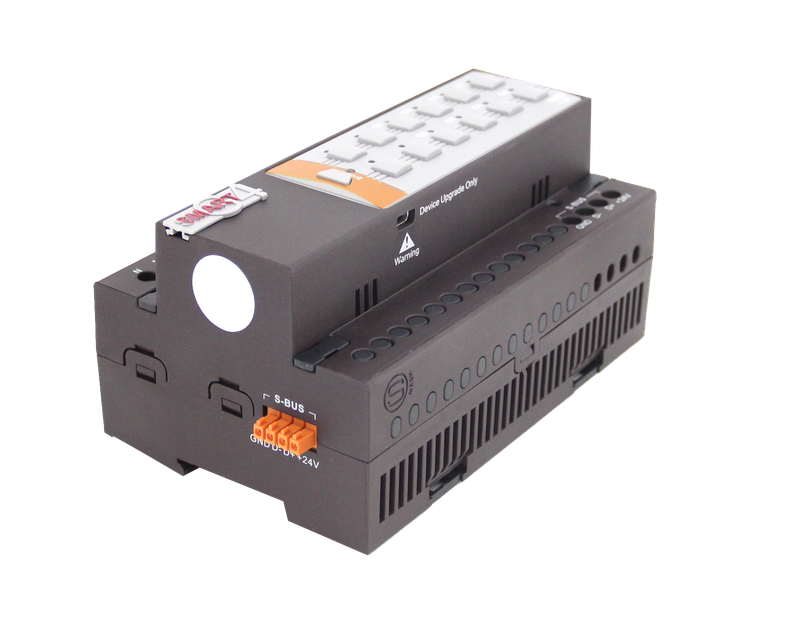

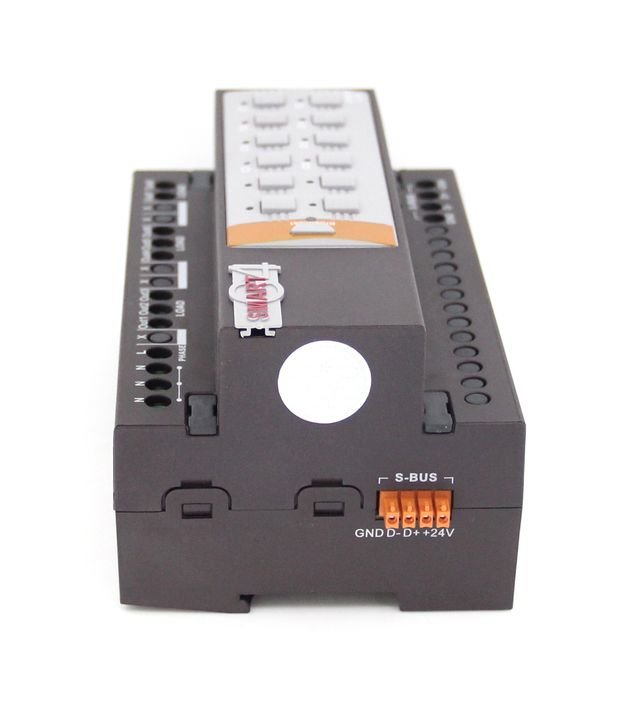

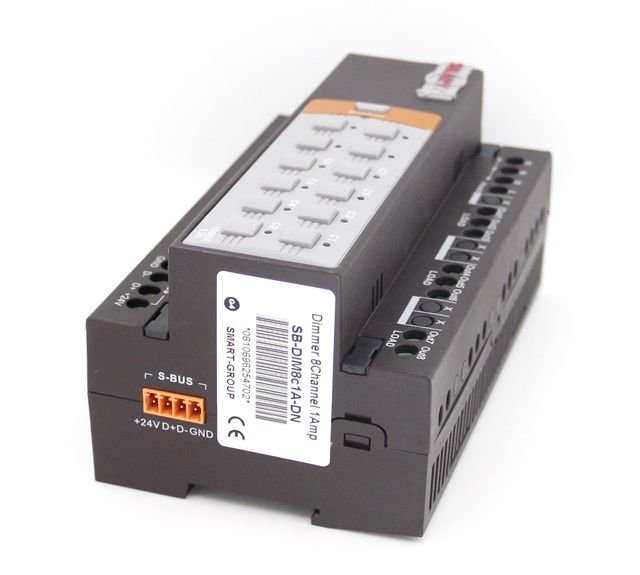

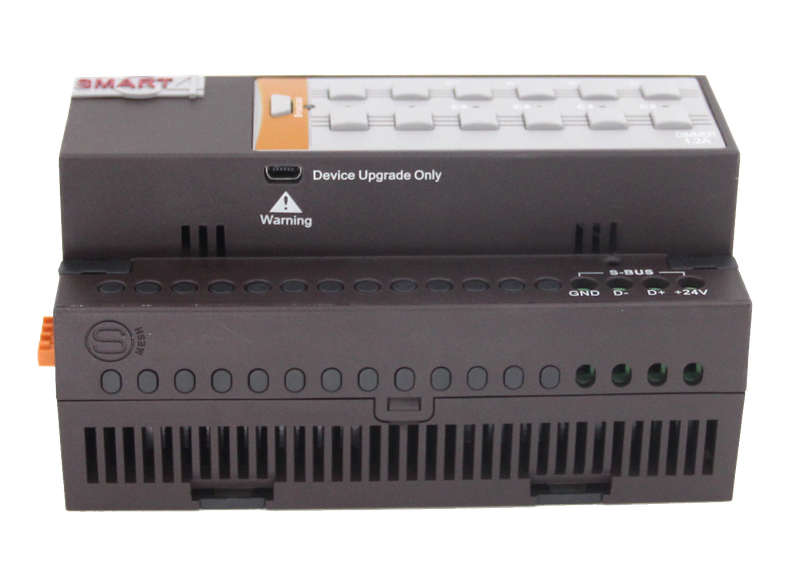

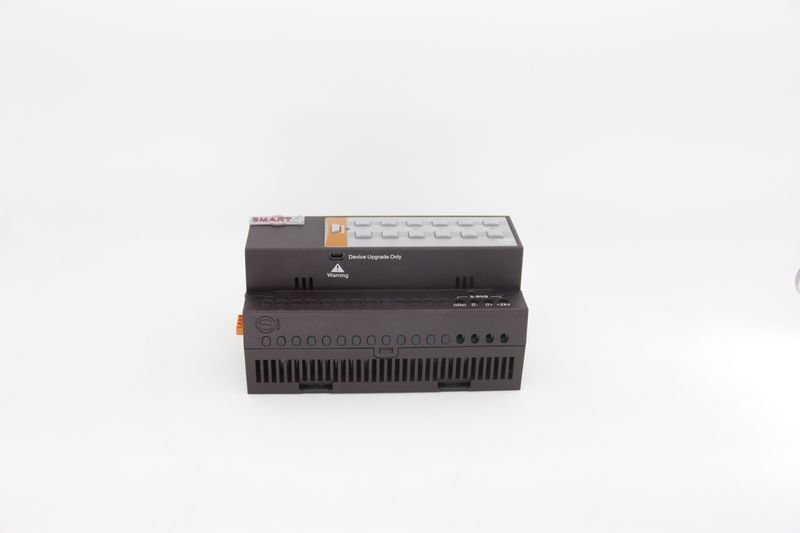

The Dimmer 8CH 1.5A is a high-performance 8-channel AC dimmer module designed for smart and scalable control of lighting and fan speed in home automation, hotel automation, and industrial applications. Each channel supports up to 1.5 Amps, making it ideal for controlling LED lights, incandescent bulbs, ceiling fans, and other dimmable AC loads with smooth and flicker-free performance.

Built on triac-based phase control technology, this dimmer module provides silent operation, long-term durability, and fine control over brightness or speed levels. It is fully compatible with popular IoT platforms, Arduino, ESP32, Raspberry Pi, and PLC controllers, allowing real-time programmable control over all 8 channels.

Whether you're creating a smart lighting system, automating a conference room, or controlling multiple fan/light zones, this 8-channel dimmer provides an efficient, compact, and safe solution.

Key Features:

• 8 individually controlled dimmer channels
• Supports up to 1.5A per channel at 230V AC
• Flicker-free phase-cut dimming for smooth operation
• Compatible with Arduino, ESP32, PLC, Raspberry Pi, etc.
• Triac-based solid-state control – silent and reliable
• LED indicators for real-time channel activity
• Screw terminal blocks for easy wiring
• Overload and overheat protection built-in

Applications:

• Smart lighting systems
• Ceiling fan speed control
• Home/office/retail automation
• Hotel room automation systems
• Stage lighting dimmer panels
• Multi-zone light and fan control

Technical Specifications:

• Channels: 8
• Load Capacity: 1.5A per channel (max 230V AC)
• Control Signal: 3.3V / 5V logic compatible
• Dimming Type: Phase-cut (TRIAC)
• Mounting: DIN rail or surface
• Protection: Overload, short-circuit, thermal
