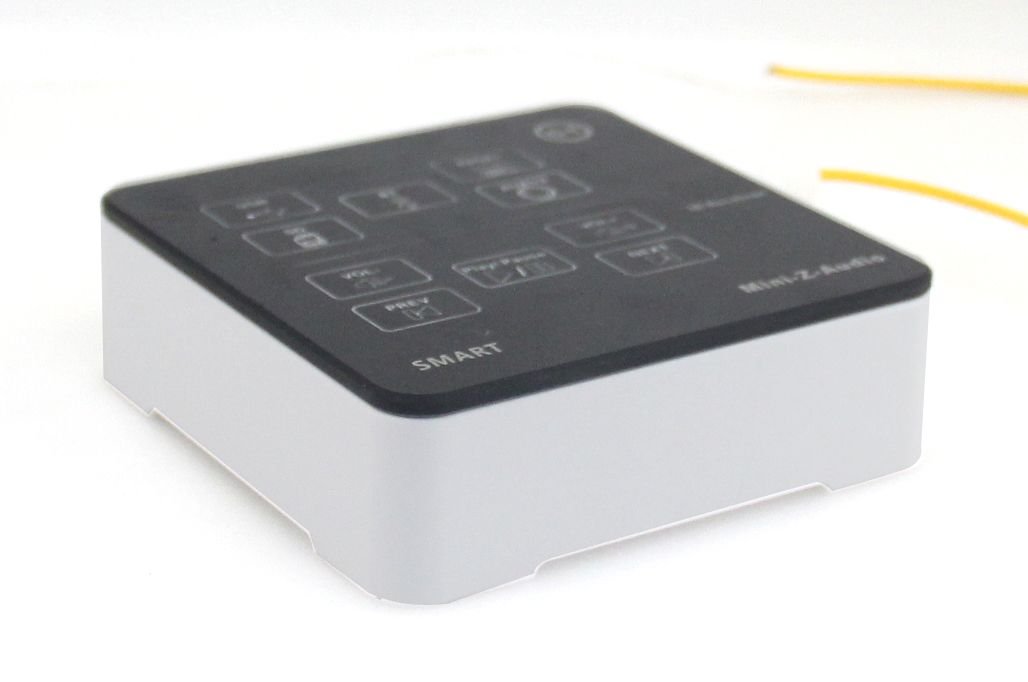

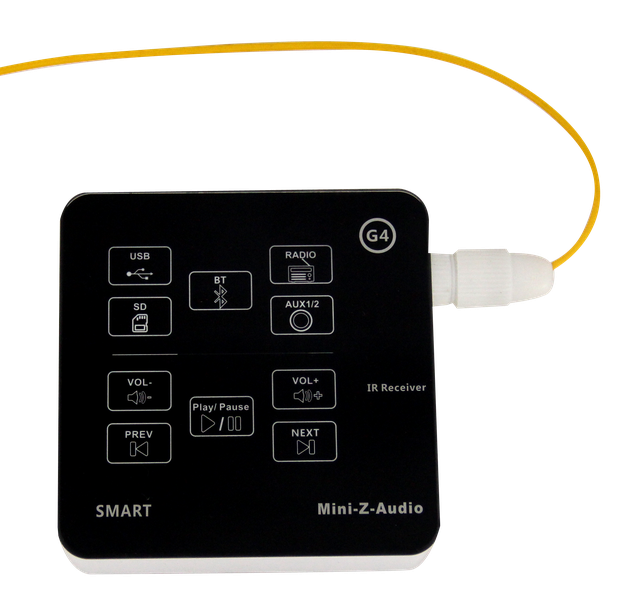

The Mini Zone Audio system is a compact multi-zone audio distribution solution designed for precise sound control in smart homes, hotels, restaurants, and commercial spaces. Engineered for seamless integration with Matrix Audio systems and home automation platforms, it allows you to deliver crystal-clear audio to specific zones without the complexity of large-scale systems.

With independent volume control, multiple input options, and scalable configuration, the Mini Zone Audio unit is perfect for background music, announcements, and targeted audio delivery in smaller or isolated areas. Its slim, modern design makes it easy to install discreetly while delivering high-fidelity performance.

Key Features

• Compact multi-zone audio control unit
• Independent volume and source selection for each zone
• High-fidelity sound processing with low noise and distortion
• Compatible with Matrix Audio and other AV control systems
• Multiple audio input options for flexibility
• Wall-mount or rack-mount installation
• Energy-efficient, low-heat design
• Ideal for hotels, offices, retail stores, and small residential zones

Applications

• Hotel background music for lobbies, hallways, and rooms
• Retail store audio zones for targeted announcements or music
• Office audio distribution for meeting rooms and common areas
• Small residential audio zones in smart homes
• Restaurants and cafes for ambient music control

Technical Specifications – Mini Zone Audio

• Audio Zones: 1–2 (expandable in multi-unit configurations)
• Audio Inputs: Stereo line-in / balanced input (varies by model)
• Output Power: 15–30 W RMS per channel
• Frequency Response: 20 Hz – 20 kHz
• Signal-to-Noise Ratio: >90 dB
• Control Interfaces: RS232, TCP/IP, or manual panel control
• Mounting: Wall-mount, surface, or rack-mount
• Power Supply: 100–240 V AC or 24 V DC (model-dependent)
• Dimensions: Compact housing for discreet placement
• Enclosure: Durable metal or ABS casing
• Operating Temperature: 0°C to 45°C
• Certifications: CE, RoHS (varies by region)
