S-BUS Ready 24 Current Sensors Input Ports. (24 Power Meters in One) High Sensitivity Design for BMS Lighting Channel Monitoring and Fixtures Replacement Maintenance. Helps for Energy Managment, Wastage Monitoring, Metering and Billing, Maintenance Planning of (Airconditioning Filters, Light Bulbs Replacements ... etc.

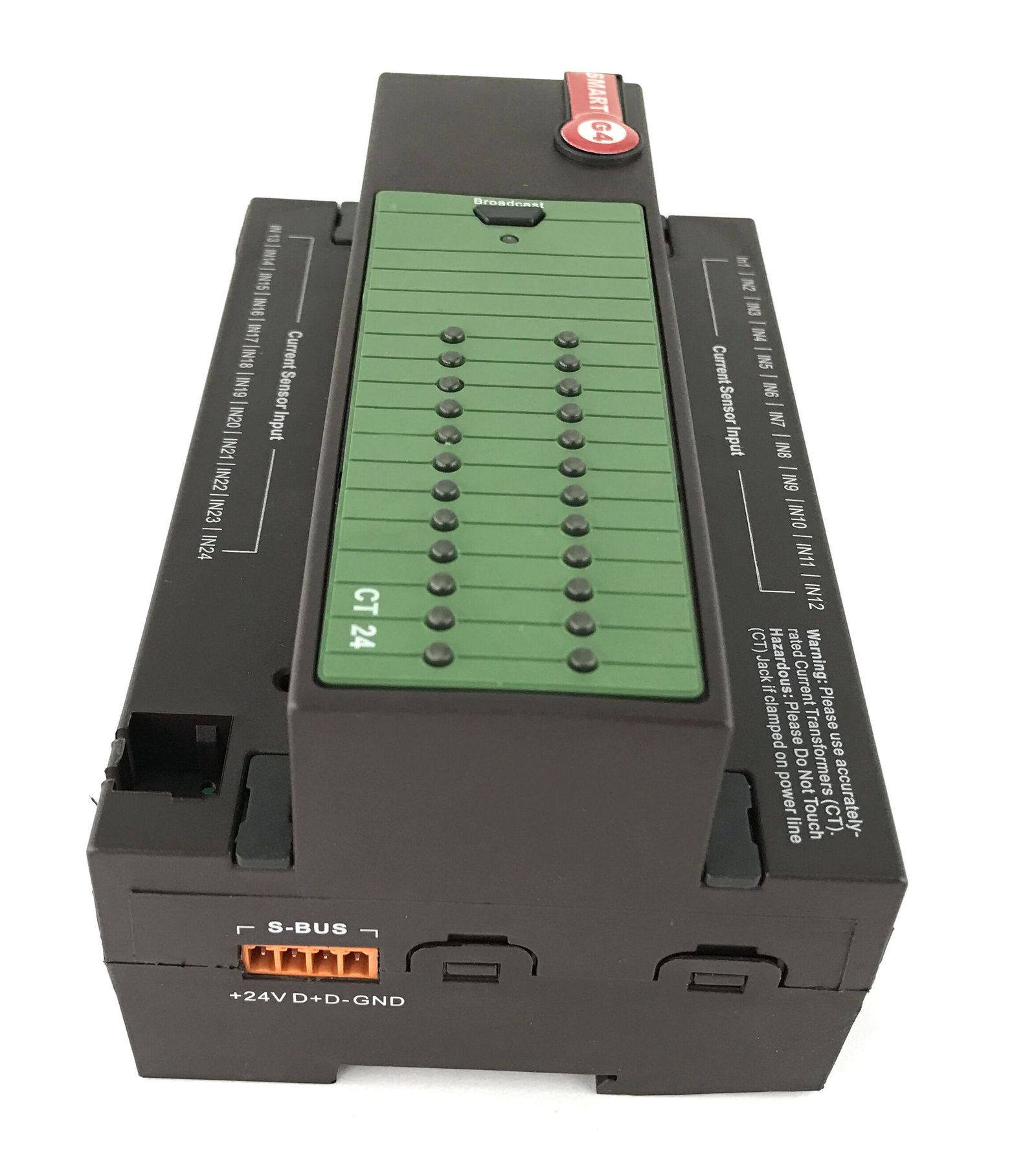

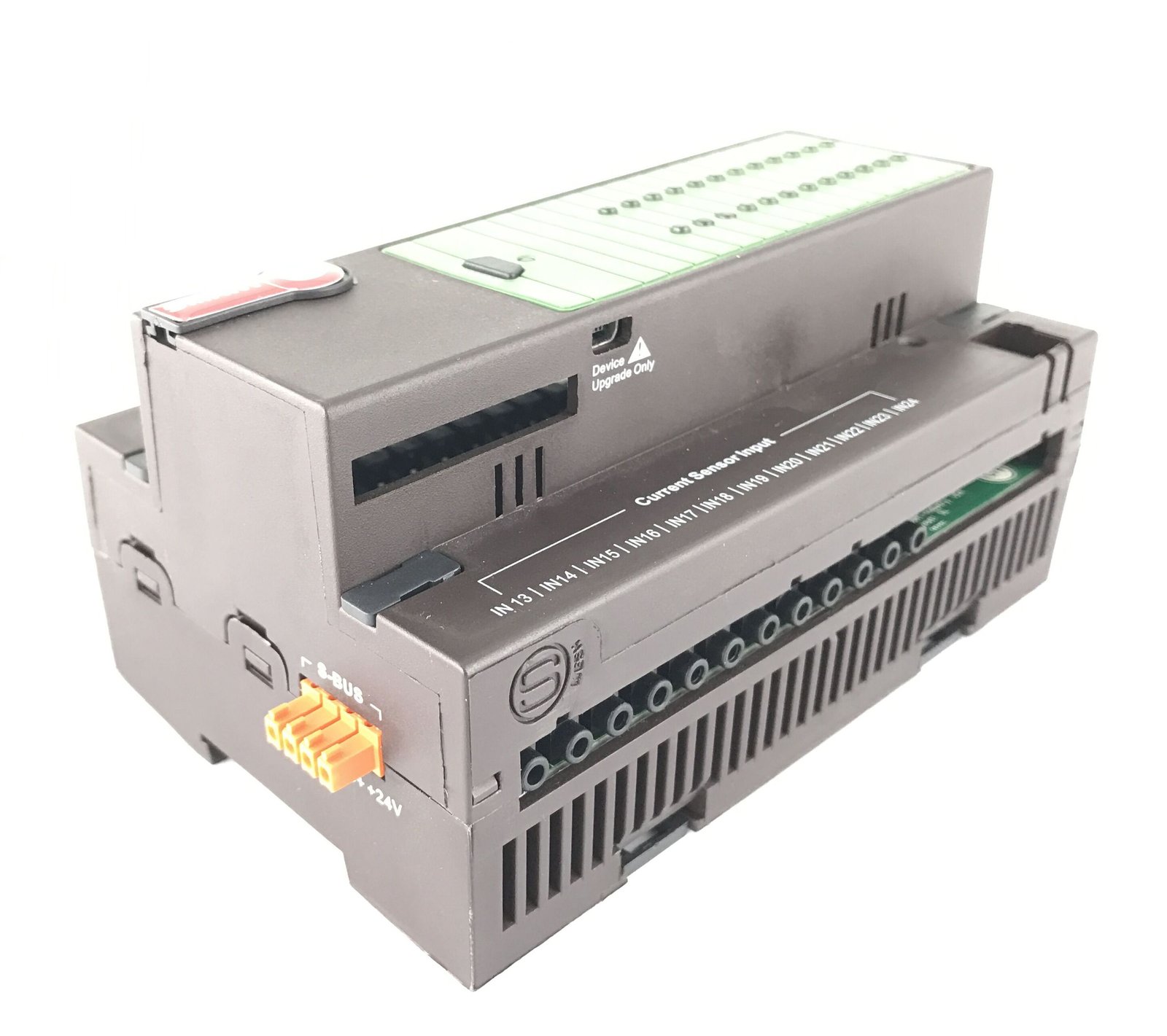

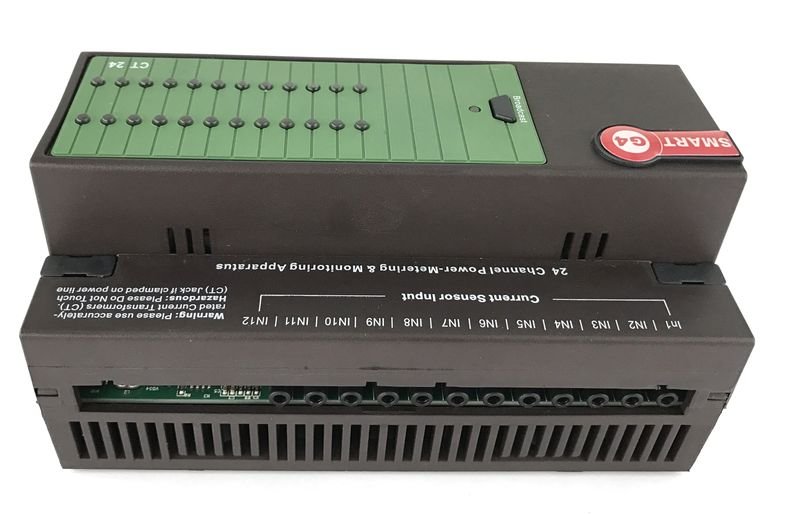

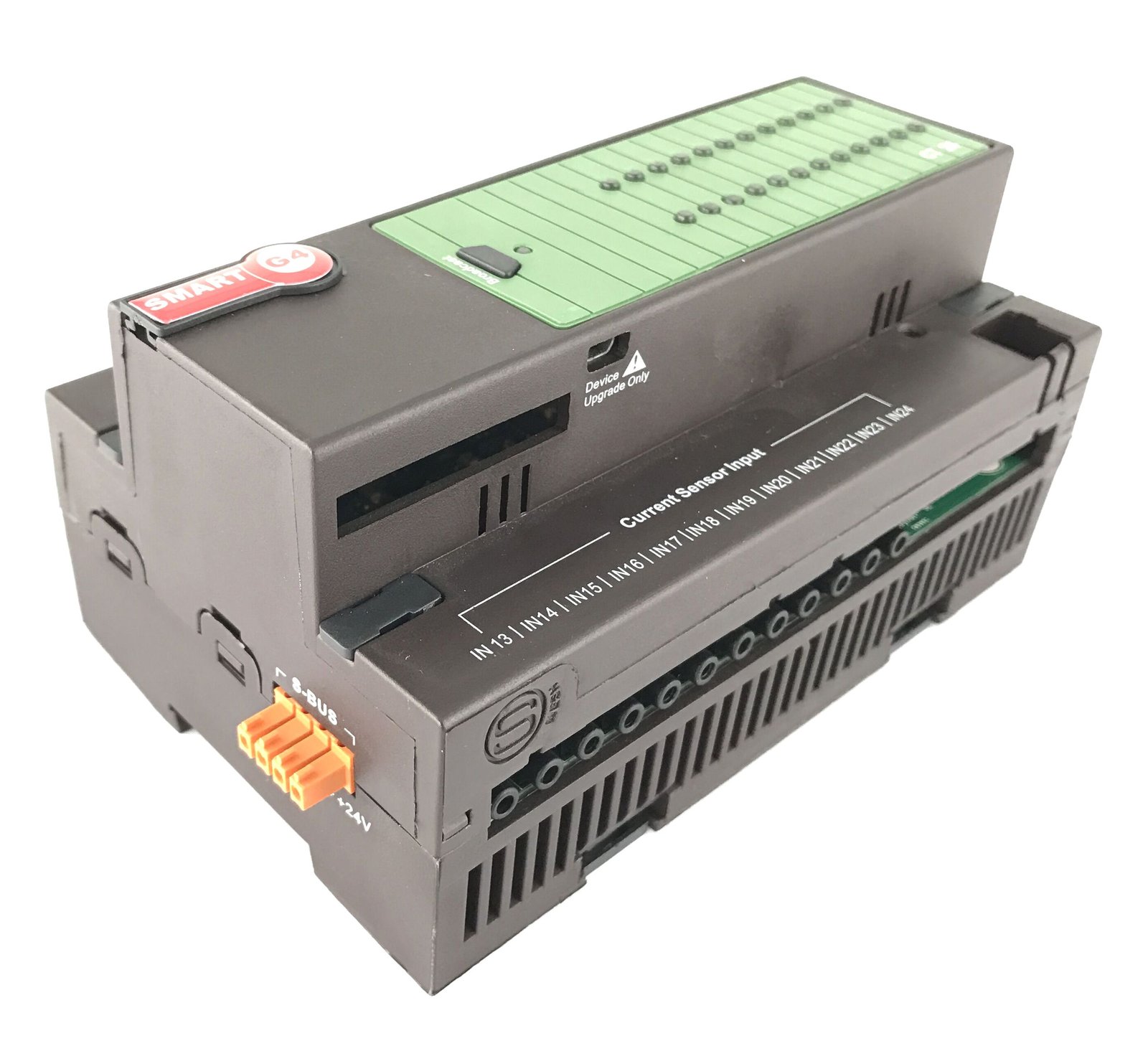

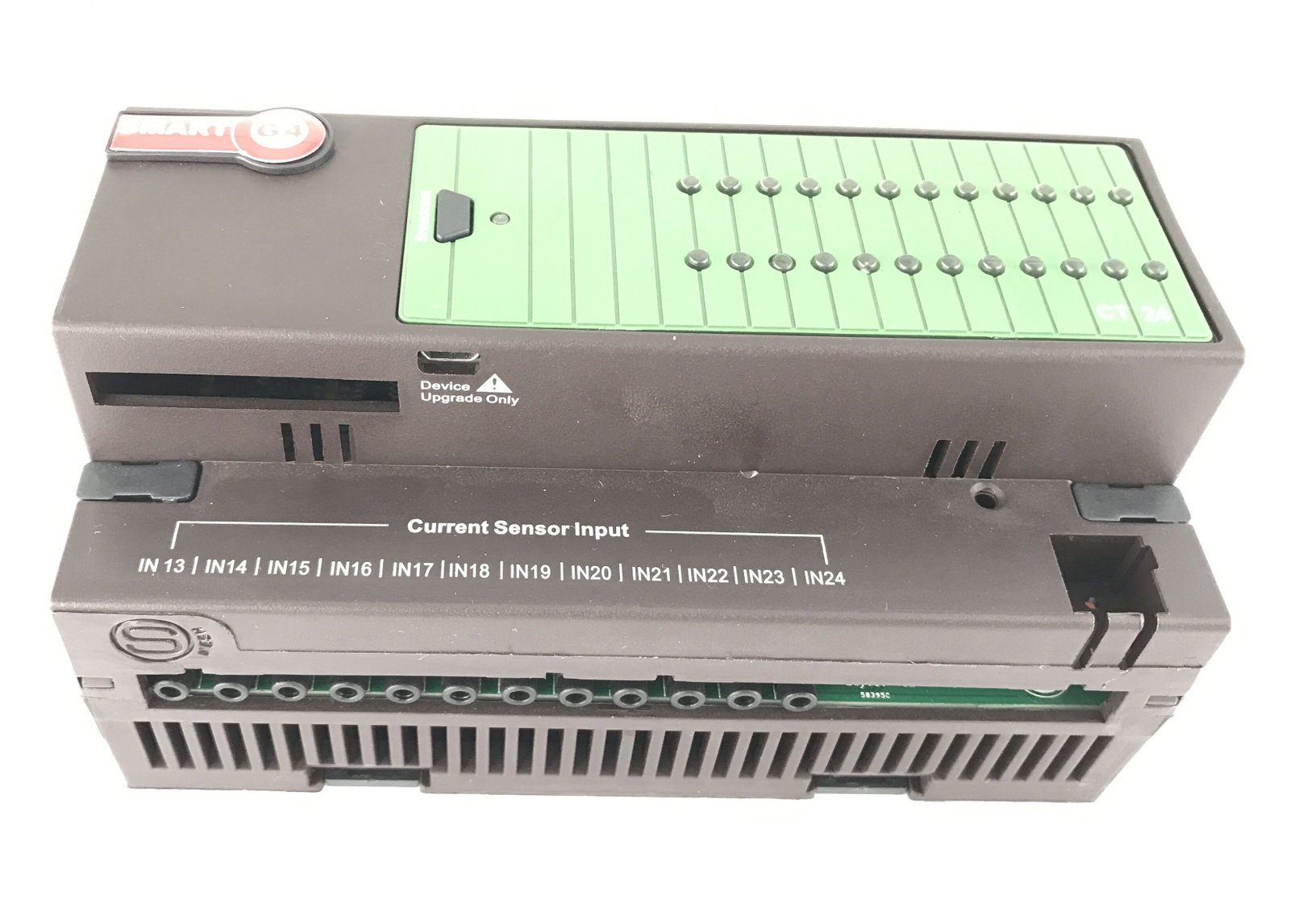

The 24 Port Power Meter (G4s) by Philip Gan is a high-performance CT (Current Transformer) reader module designed for accurate energy monitoring and intelligent load management across multiple circuits. With 24 CT input ports, it provides real-time current measurement, load tracking, and overcurrent alerts — all in a compact, DIN-rail mountable format.

This advanced multi-channel CT reader is ideal for industrial automation, smart buildings, data centers, and energy management systems, where precise monitoring of multiple electrical loads is essential.

Equipped with a built-in alert system, the module notifies users of current threshold exceedance or abnormal load behavior, ensuring preventive maintenance and safety compliance. The G4s architecture ensures fast sampling rates, stable communication, and long-term reliability in harsh environments.

It can seamlessly interface with PLC systems, IoT controllers, Modbus devices, and custom automation setups, making it highly versatile for both engineers and system integrators.

⚙️ Key Features

• 24-channel CT reader for current measurement
• Integrated alert system for overcurrent or anomalies
• Real-time load monitoring and data logging
• Supports 0–5A / 0–60A CTs (customizable range)
• High-accuracy RMS current sensing
• RS485 / Modbus RTU communication (optional)
• DIN-rail mountable compact enclosure
• Compatible with PLCs, SCADA, BMS, and IoT controllers
• LED status indicators for each port
• Industrial-grade design for 24/7 operation

🏭 Applications

• Energy metering and monitoring systems
• Industrial power distribution boards
• Smart factories and automation panels
• Building Management Systems (BMS)
• IoT-based current sensing and load analytics
• Data centers and commercial load analysis
• Preventive maintenance and energy efficiency auditing
• Renewable energy load monitoring (solar, wind, hybrid)

📊 Technical Specifications

• Model: 24 Port Power Meter, CT Reader with Alert (G4s)
• Channels: 24 CT input ports
• Input Type: AC Current (0–5A / 0–60A CTs supported)
• Alert Output: Programmable alarm thresholds
• Communication: RS485 / Modbus RTU
• Mounting: DIN-Rail compatible
• Supply Voltage: 12–24V DC
• Operating Temperature: -10°C to +70°C
• Enclosure: Flame-retardant industrial ABS
• Designed by: Philip Gan
