Impulse Metering Module by Tanel Kukk (G4)
Category: Metering
Price: $80.00
Stock Status: In Stock (10000 available)
SKU: NONE-41

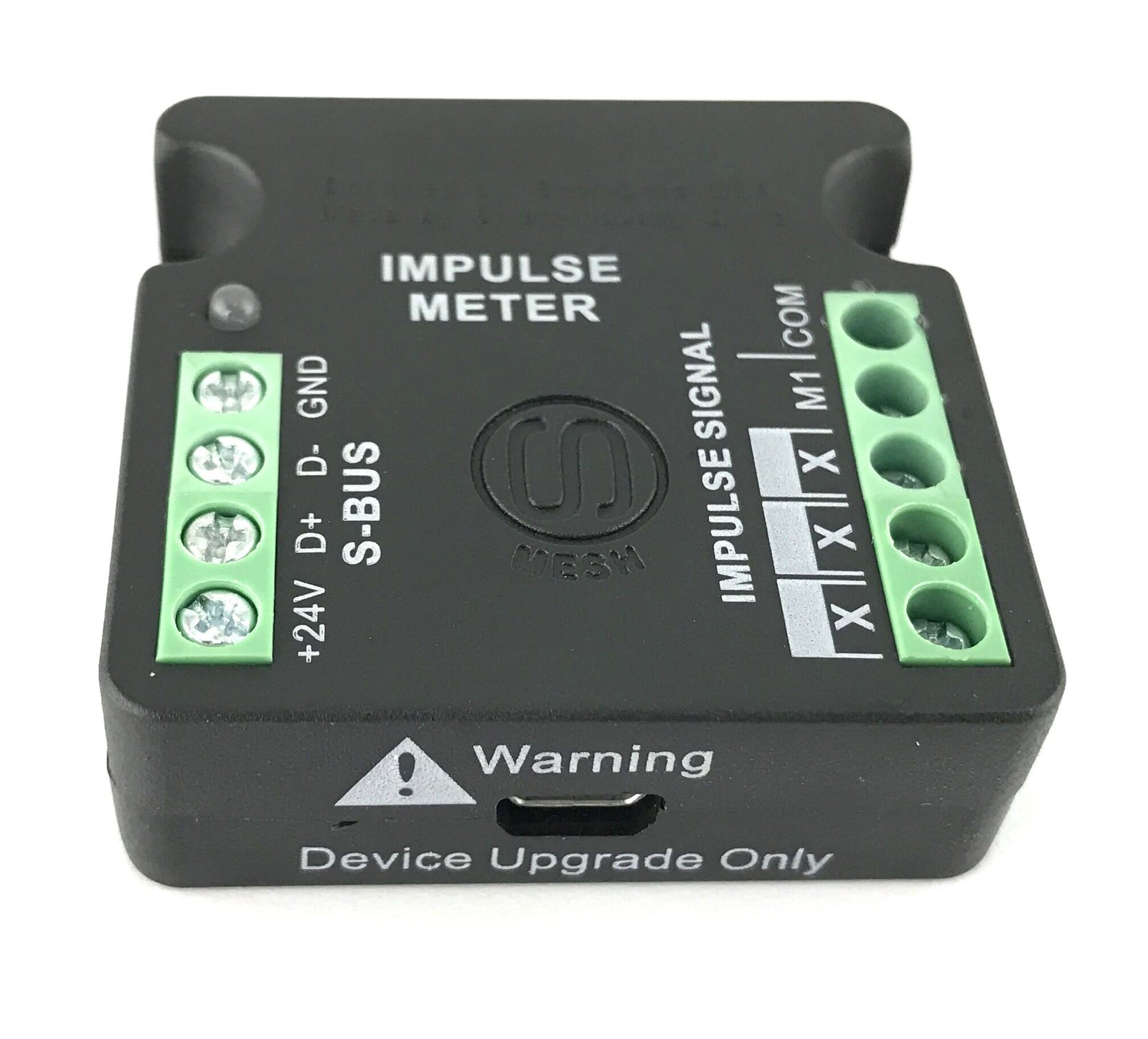

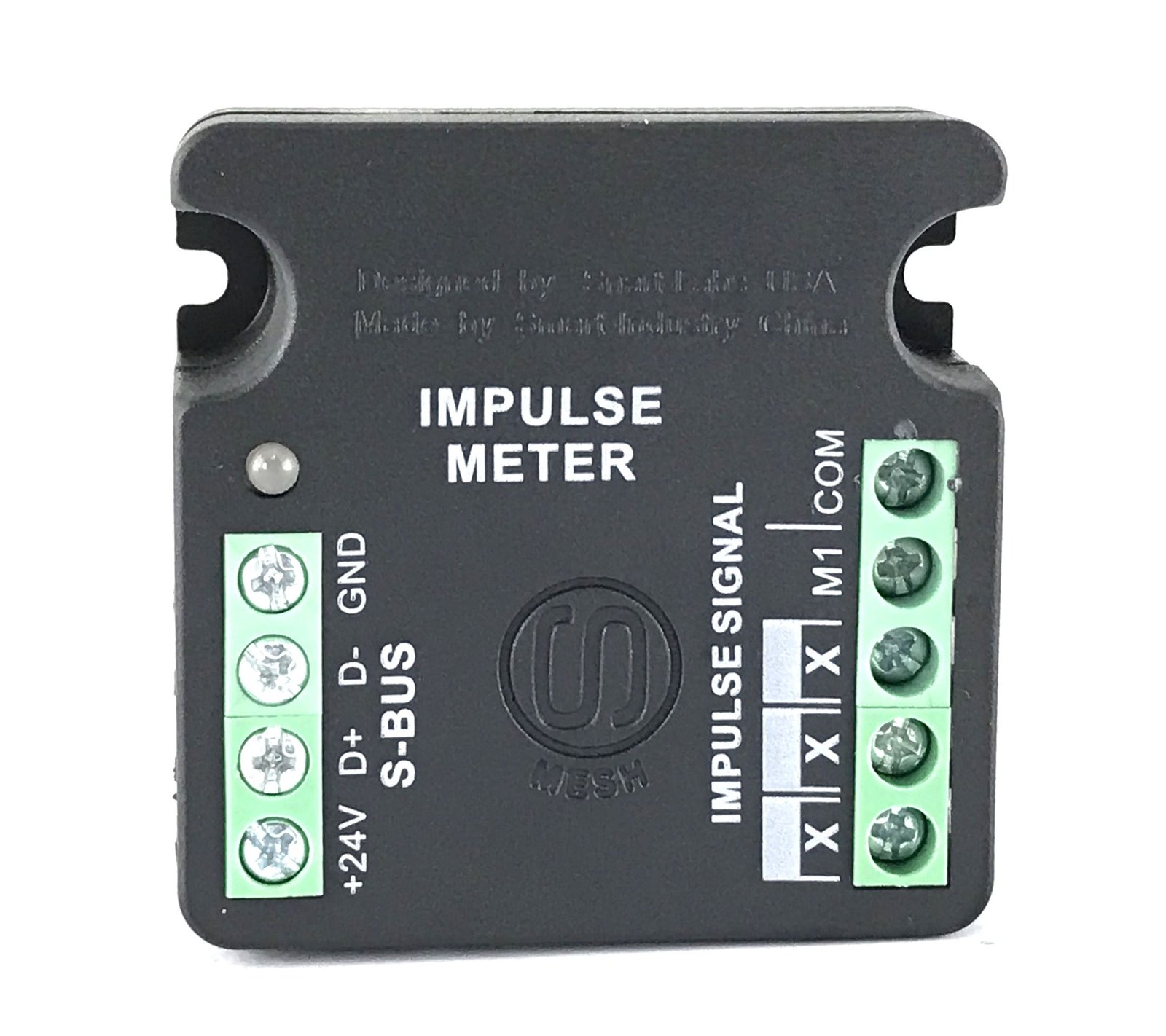

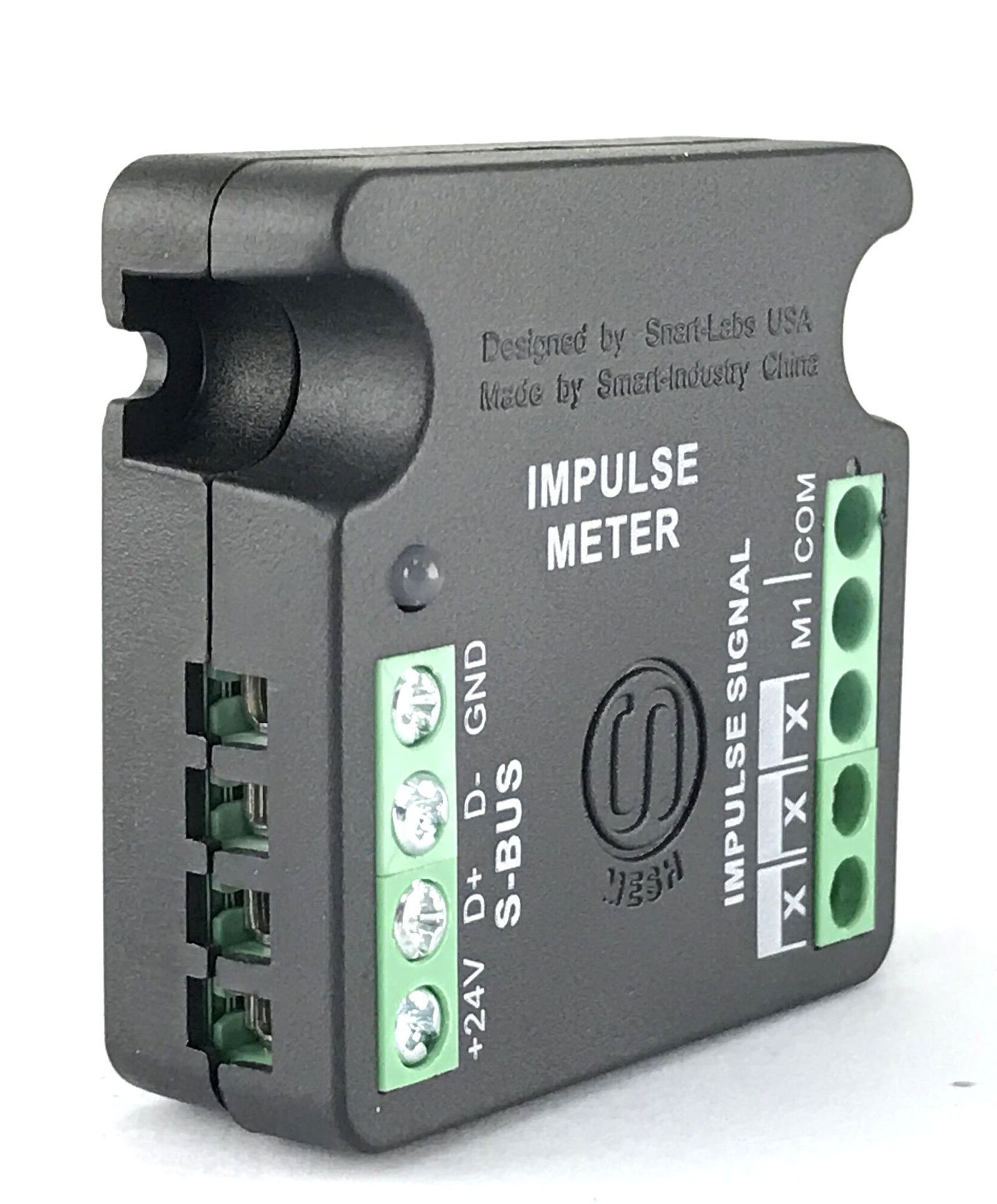

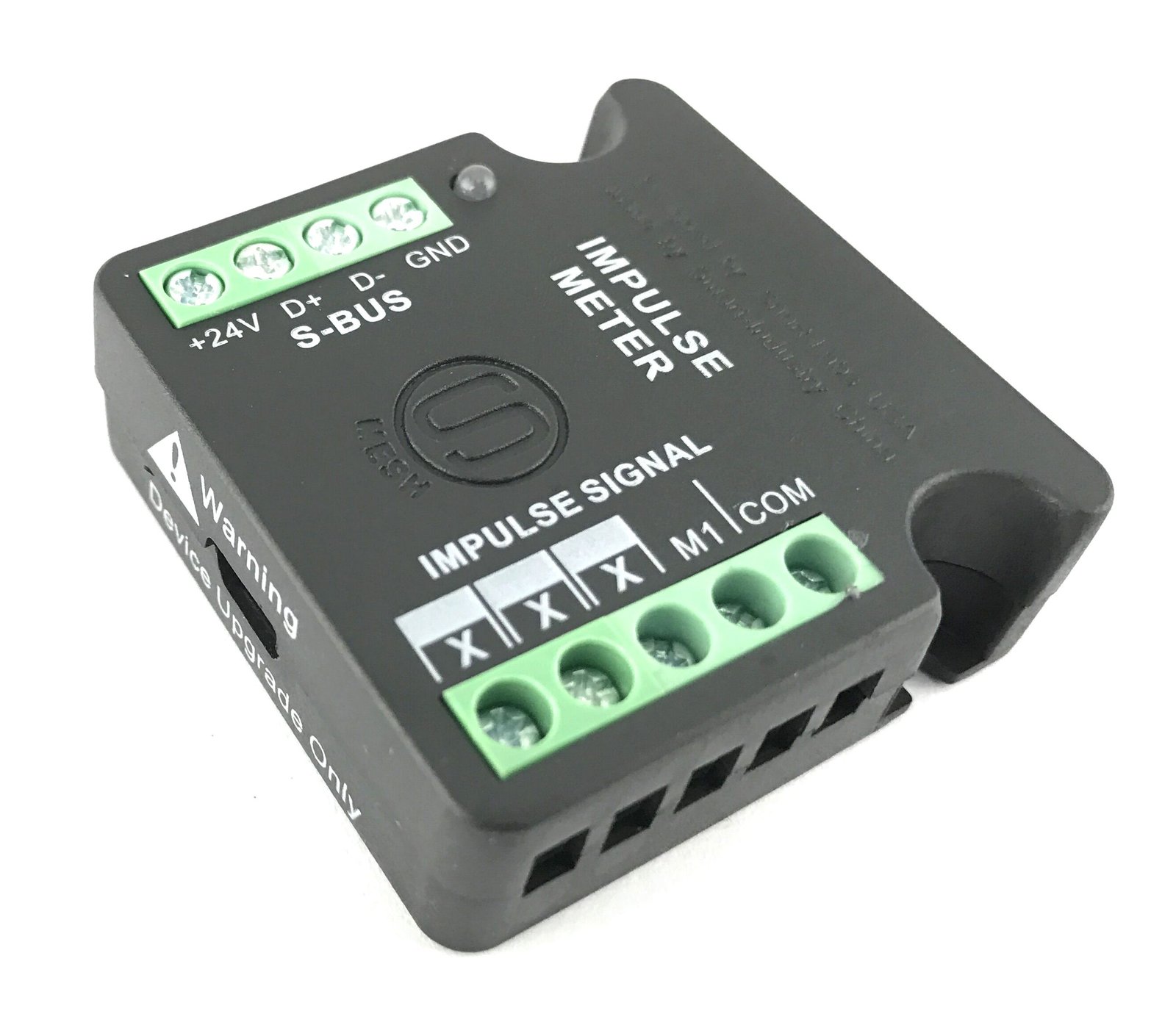

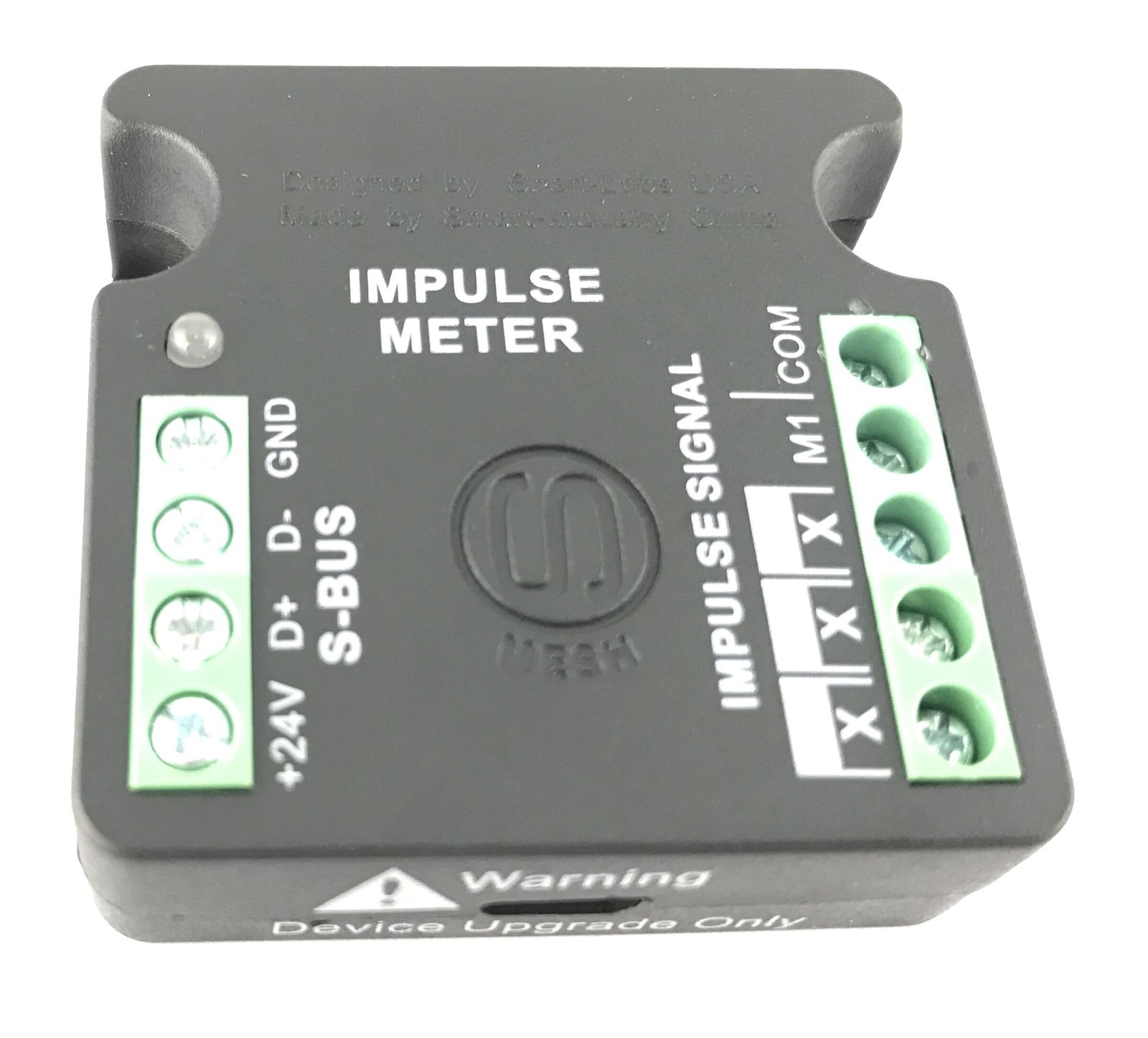

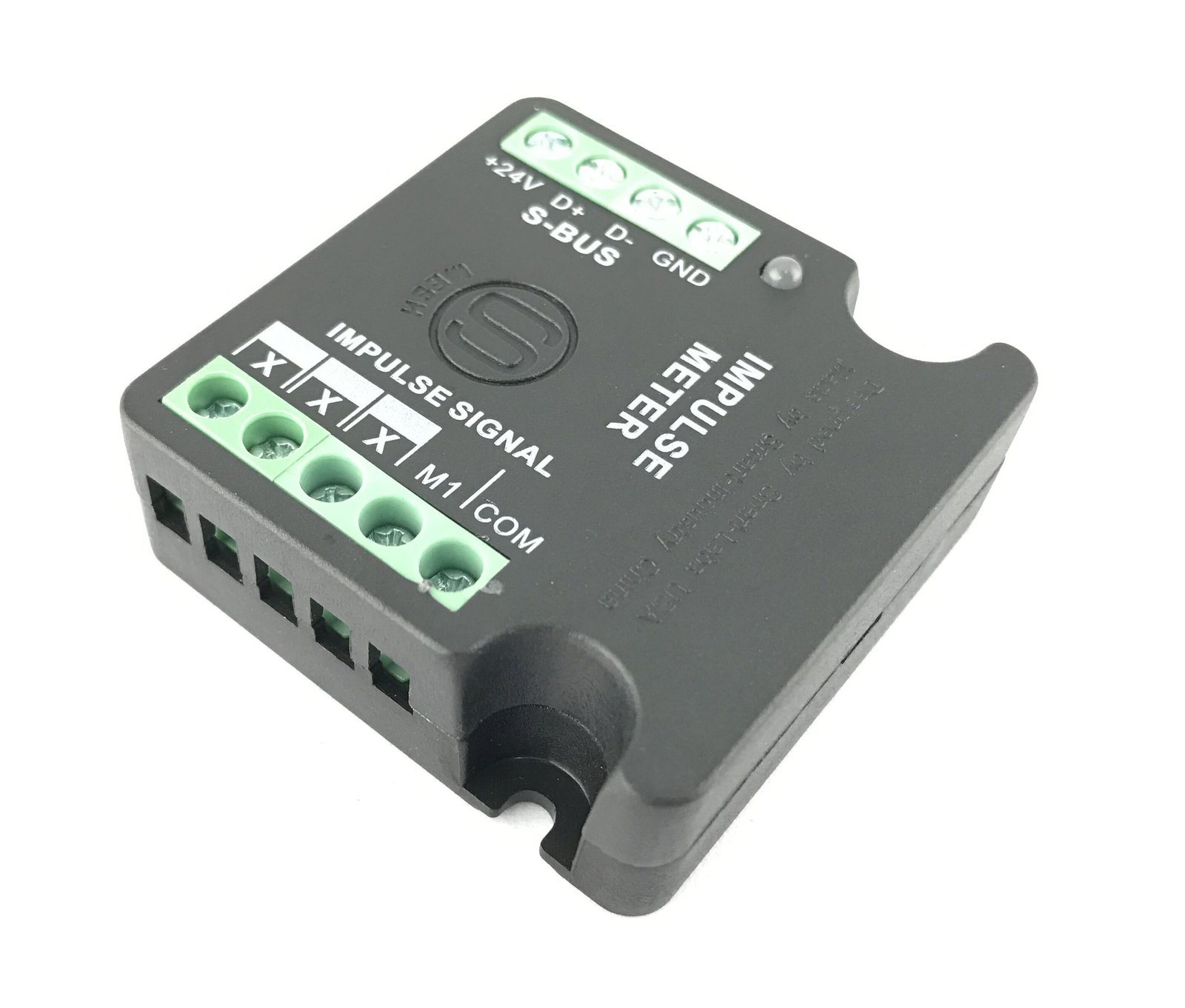

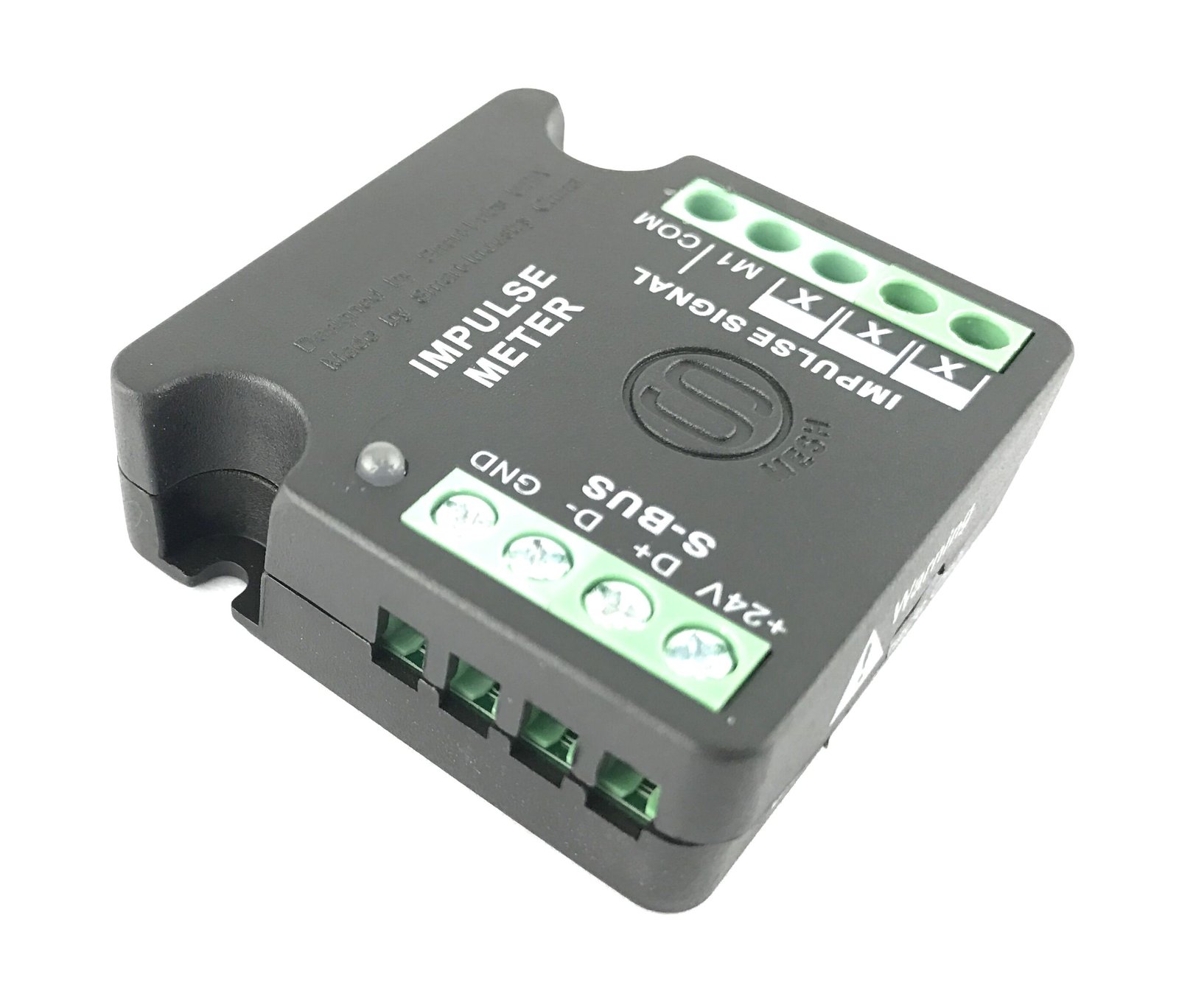

The Impulse Metering Module by Tanel Kukk (G4) is an industrial-grade impulse and pulse metering controller designed for accurate counting and monitoring of energy, water, and gas consumption through pulse-based sensors. Featuring the latest G4 architecture, this module delivers high-speed pulse detection, data accuracy, and reliable performance for both industrial and building-automation applications.
Engineered for integration with PLC systems, IoT gateways, and smart monitoring setups, it efficiently converts incoming pulse signals from meters, flow sensors, or switches into precise digital data for energy analysis and automation control.
Key Features
- Supports multiple pulse inputs for energy, water, and gas meters
- High-speed impulse detection with noise-immune circuitry
- Compatible with Tanel Kukk G4 series automation controllers
- DIN-rail mountable for professional industrial installation
- LED indicators for channel and signal status
- Works with Arduino, Raspberry Pi, ESP32, and PLCs
- Opto-isolated inputs ensure signal safety and accuracy
- Modular design for easy expansion in multi-metering systems
- Low power consumption, ideal for continuous operation
- Robust G4 hardware ensures reliability in harsh environments
Applications
- Energy pulse metering for industrial plants
- Building automation and facility monitoring
- Water and gas flow counting
- Smart energy management systems
- Process automation and analytics
- IoT-based consumption monitoring
- Remote pulse data logging
- PLC-integrated impulse monitoring
- Power usage optimization
- Smart city infrastructure metering
Technical Specifications
| Specification | Details |
|---|---|
| Inputs | Multiple digital pulse inputs (configurable) |
| Input Type | Dry contact / open-collector / pulse signal |
| Pulse Frequency | Up to 10 kHz |
| Operating Voltage | 12 – 24 V DC |
| Isolation | Opto-isolated inputs |
| Interface | Modbus / digital I/O |
| Mounting | DIN-rail (G4 standard) |
| Indicators | Input signal LEDs |
| Operating Temp | –10 °C to +70 °C |
| Enclosure | Industrial G4 ABS casing |
Why Choose the Impulse Metering Module (G4)?
- Developed by Tanel Kukk, a trusted name in automation hardware
- Built with G4 engineering standards for precision and durability
- Enables real-time pulse counting for multiple sources
- Integrates easily with PLC and IoT automation platforms
- Perfect for energy management, metering analytics, and data logging
- Compact, reliable, and designed for 24/7 operation
