Full Aluminum Frame and Buttons, Classy wall switch Panel with LCD and Multi functions, Built in IR Receiver Plug in Port, Thermal Sensor Couple for Temperature, With Easy Graphical and Multi Lingual configuration ability, Multi Functional Pages: Lighting, Moods, HVAC, Music, Fan Speeds, Motorized Shades, Security. With 2-way status update. (Each Button has right and left different function, Back let LED, LCD Brightness control), AC Page Lock Function, Double click Macro Function, Mannual Programming Enabled.

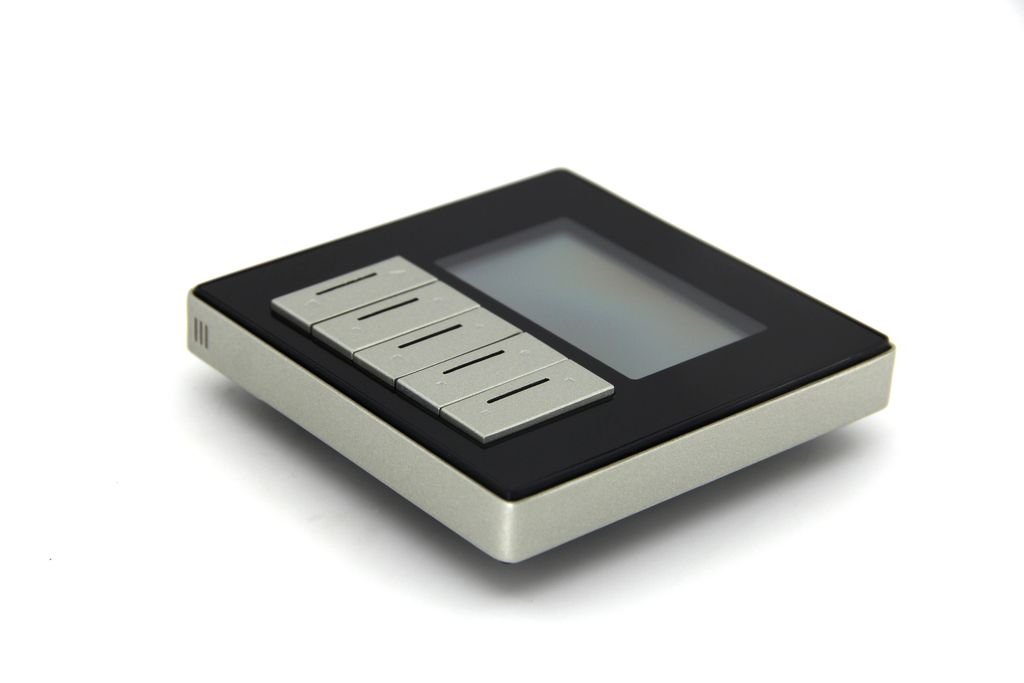

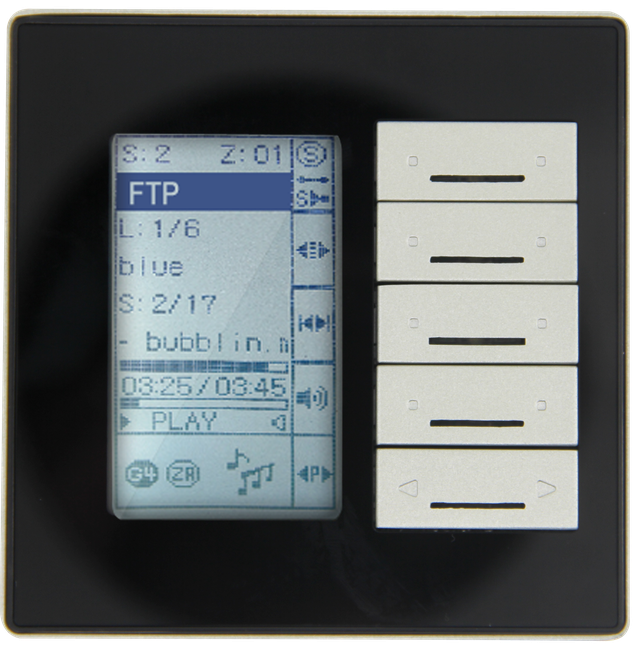

"DDP" Smart Dynamic Display Panel (G4)
Category: user interface
Price: $200.00
Stock Status: In Stock (10000 available)
SKU: NONE-78
The Digital Touch Panel (DTP) is a sleek and intuitive touchscreen control interface designed for centralized operation of smart home, commercial, and hospitality automation systems. Built for seamless integration with G5s automation platforms and other control systems, it enables effortless management of lighting, climate, audio, video, and security from a single, user-friendly interface.
With its high-resolution capacitive display, customizable UI, and responsive multi-touch support, the DTP ensures fast and precise control for any connected system. Its modern design, slim profile, and robust build make it suitable for wall-mounted or tabletop installations in premium residential and commercial environments.
Key Features
- High-resolution capacitive touch display with multi-touch support
- Customizable user interface for branding and personalization
- Real-time control of lighting, HVAC, AV, and security systems
- Compatible with G5s and third-party automation platforms
- Fast, responsive operation with intuitive navigation
- Sleek, slim profile for modern interiors
- Wall-mount, flush-mount, or desktop installation options
- Secure communication with password/user authentication
- Energy-efficient operation with auto-dim and sleep modes
Applications
- Smart home control for lighting, climate, and entertainment
- Hotel guest room automation for lights, curtains, and AC
- Boardroom & conference control for AV and presentations
- Retail & showroom automation for lighting and media displays
- Luxury apartments and villas for centralized system management
Technical Specifications – DTP
- Display Size: 7” / 10” / 12” (model-dependent)
- Resolution: 1024×600 to 1920×1080 pixels
- Touch Technology: Capacitive multi-touch
- Processor: Embedded ARM-based high-performance CPU
- Operating System: Embedded Linux / Android (model-dependent)
- Connectivity: Ethernet, Wi-Fi, RS485, USB
- Control Protocols: TCP/IP, RS485, Modbus, proprietary automation protocols
- Power Supply: PoE (Power over Ethernet) / 12 V DC
- Audio Support: Built-in speaker & microphone (optional)
- Mounting Options: Wall-mount, flush-mount, desktop stand
- Operating Temperature: 0°C to 50°C
- Enclosure: Aluminum alloy or ABS housing
- Certifications: CE, RoHS
